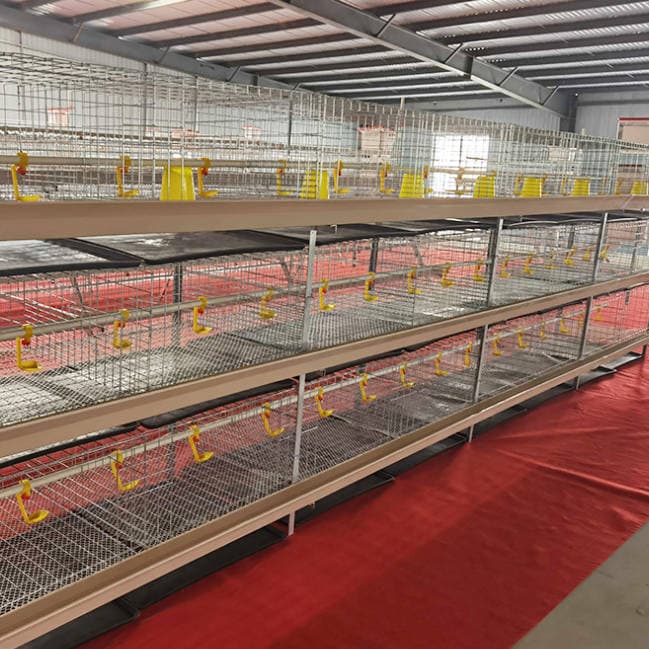

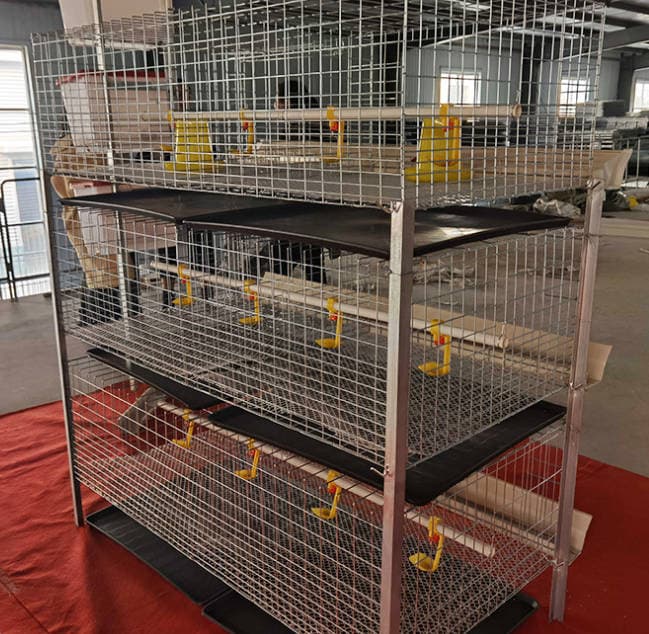

H Type Galvanized Layer Chicken Cage System

Product Overview

The H-type galvanized layer chicken cage system is a professional solution tailored for modern commercial layer farms. Adopting a vertical stacked H-frame structure, it maximizes the stocking density per square meter while simplifying daily management operations. The complete system package includes cage units, support frames, front feed troughs, nipple drinking lines (equipped with water tanks), tiered manure collection belts, and all essential accessories.

Constructed with high-grade hot-dip galvanized steel for both cage meshes and frames, the system delivers exceptional corrosion resistance and an extended service life (15+ years) even in high-humidity poultry house environments. The optimized cage dimensions and smooth wire surfaces minimize feather damage and leg injuries, creating a comfortable living environment for laying hens and effectively boosting egg production rates by 5-8%.

Key Features

• Vertical H-frame stacked design: High-density stocking (up to 60 birds/m²), ideal for medium and large-scale poultry farms.
• Hot-dip galvanized steel construction: Superior strength, durability, and rust resistance, with a service life of 15-20 years.
• Automatic nipple drinking system: Food-grade yellow nipple drinkers paired with insulated water tanks ensure continuous supply of clean water, reducing water waste by 30%.
• Front feed trough: Ergonomic design for manual or automatic feeding, cutting feed waste by 15-20% compared to traditional troughs.
• Tiered manure collection belts: PVC/rubber belts under each tier remove droppings in real time, keeping the house clean and reducing disease risk by 40%.
• Flexible configuration: 3–5 tiers available, customizable to match different poultry house heights and farm scales (1,000–100,000 birds).
• Modular design: Easy assembly, cleaning, and disinfection; no professional tools required for routine maintenance.

Typical Technical Specifications

Note: The following data are typical configuration ranges and can be fully customized according to your farm design and local breeding standards.

Exact capacity, dimensions, and material thickness can be provided based on our standard models or your custom requirements.

Application & Farm Layout

This H-type layer cage system is adaptable to both open-sided and closed environmental control poultry houses, and is widely deployed in commercial egg production facilities across Africa, the Middle East, Southeast Asia, and South America.

The vertical H-frame design enables systematic arrangement of long cage rows with 0.8–1.2m walking aisles between them, facilitating daily inspections, vaccination, and egg collection. When integrated with automatic feeding systems, egg collection conveyors, and centralized manure removal systems, the farm can achieve semi-automatic operation with 60% higher efficiency than traditional floor rearing.

Compared to free-range/floor rearing, this cage system reduces labor intensity by 50%, improves house hygiene by 70%, and increases layer survival rate (up to 95%) and annual egg production (up to 320 eggs/bird).

Advantages for Your Poultry Business

1. Higher stocking density & lower cost per birdVertical space utilization increases stocking density by 2–3 times compared to floor rearing, cutting construction costs per bird by 25–30% and boosting overall farm profitability by 15–20%.
2. Superior hygiene & disease controlReal-time manure removal via belts reduces ammonia and harmful gas concentrations by 40–50%. Layers have no direct contact with manure, improving foot health and reducing the incidence of coccidiosis, salmonellosis, and other common diseases by 35–45%.
3. Labor saving & efficient managementCentralized feed, water, and manure systems streamline daily operations. A single worker can manage 5,000–8,000 birds (vs. 2,000–3,000 birds with floor rearing), lowering labor costs by 40–50%.
4. Long service life & minimal maintenanceFull galvanization with thick zinc coating resists rust and corrosion in high-humidity, high-ammonia farm environments. With regular cleaning, the system has a service life of 15–20 years, reducing replacement costs and long-term investment risks.

Packaging, Delivery & Service

Packaging

The system is shipped in knock-down (KD) form to maximize container space utilization (saving 30% of shipping volume). All components (cage mesh, frames, troughs, drinkers, tanks, belts, accessories) are individually packed in waterproof cartons/pallets, with clear labeling for easy identification during installation.

Delivery

We offer flexible delivery options (sea/air/land) based on your location and timeline. Standard lead time: 15–25 days for standard models, 25–40 days for custom configurations.

After-Sales Service

• Installation support: Detailed 3D installation drawings, video tutorials, and online guidance from our professional engineers (available 24/7 for urgent issues). On-site installation training is optional (cost-based).
• Customized design: Tailored poultry house layout suggestions based on your land size, target bird quantity, local climate, and breeding habits.
• One-stop solution: We provide integrated support for complete poultry equipment (ventilation, cooling, automatic feeding/egg collection, environmental control systems) to meet full-scale farm construction needs.
• Warranty: 1-year warranty for core components (frames, drinking systems), lifelong technical support.
